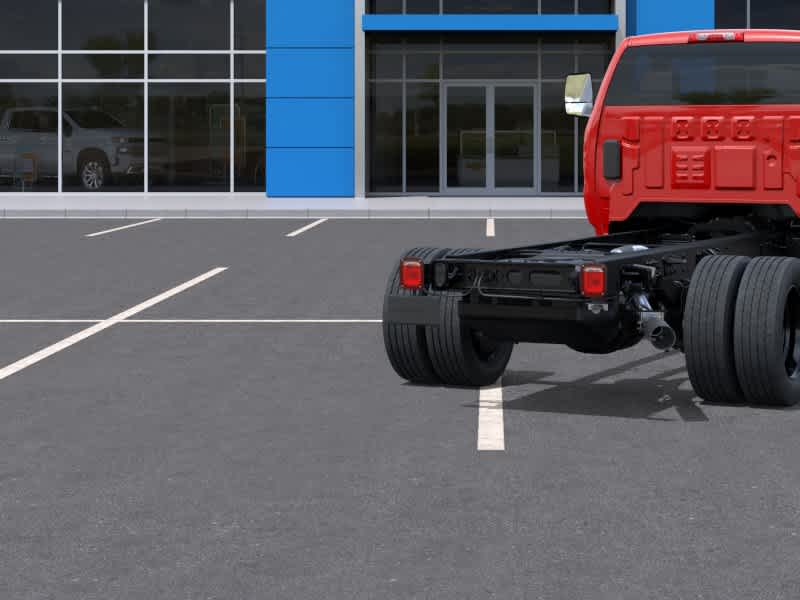

• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Glass, solar absorbing, tinted
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lbs. (Requires (YEY) Tires, rear 225/70R19.5G highway blackwall Pirelli, Max Axle Load: 15,000 lbs. or (YEZ) Tires, rear 225/70R19.5G traction blackwall Pirelli, Max Axle Load: 15,000 lbs.) (STD)
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Tires, rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15,000 lbs. (Requires (XEY) Tires front 225/70R19.5G Highway blackwall Pirelli.) (STD)
• Wheel, spare delete
• Door handles, Black

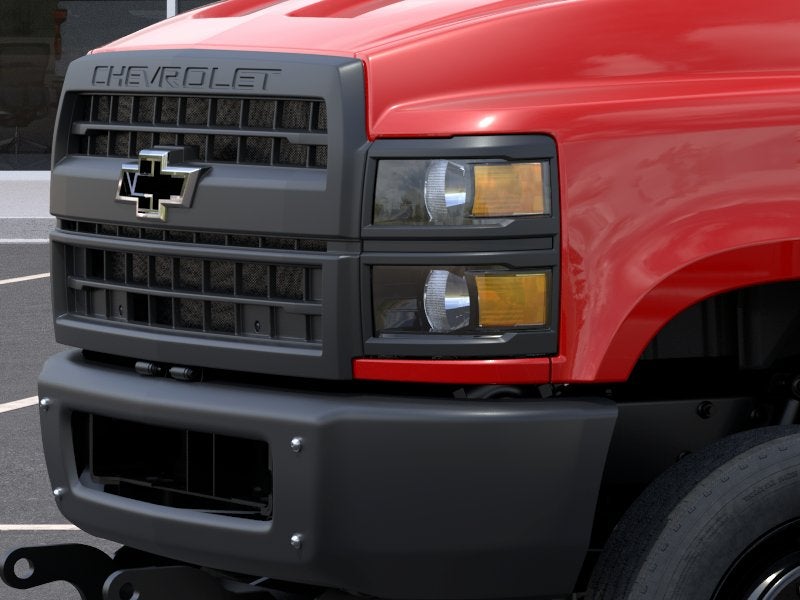

• Grille, base, molded in color, Black

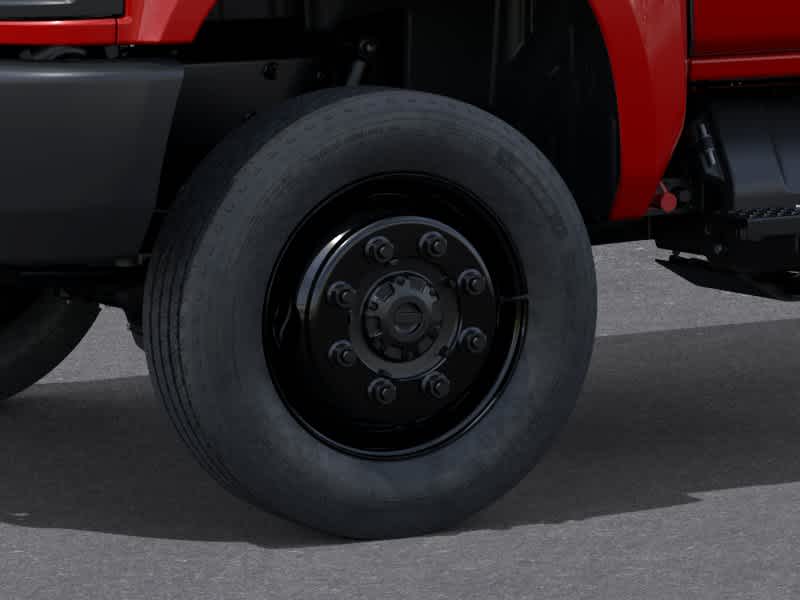

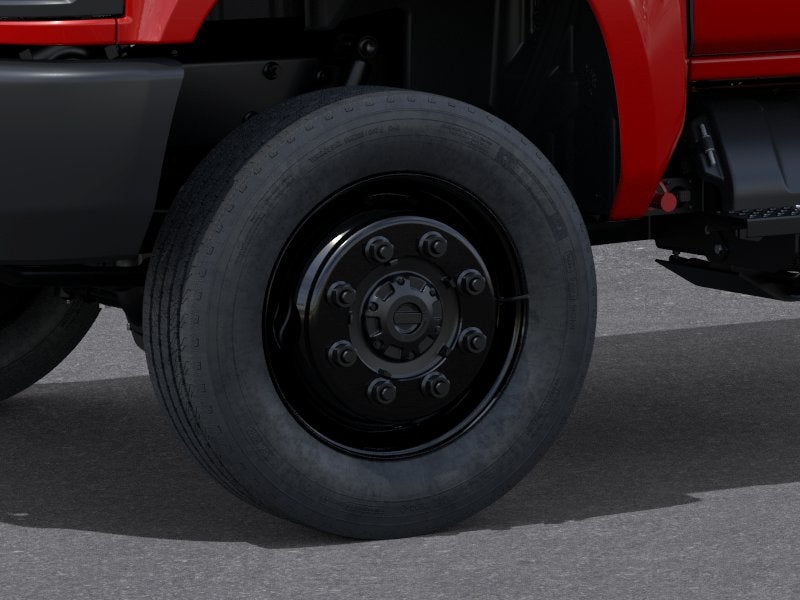

• Wheels, 19.5" x 6.75", steel, Black painted, 8-holes, hub piloted (STD)
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Assist steps
• Lamps, Smoked Amber roof marker

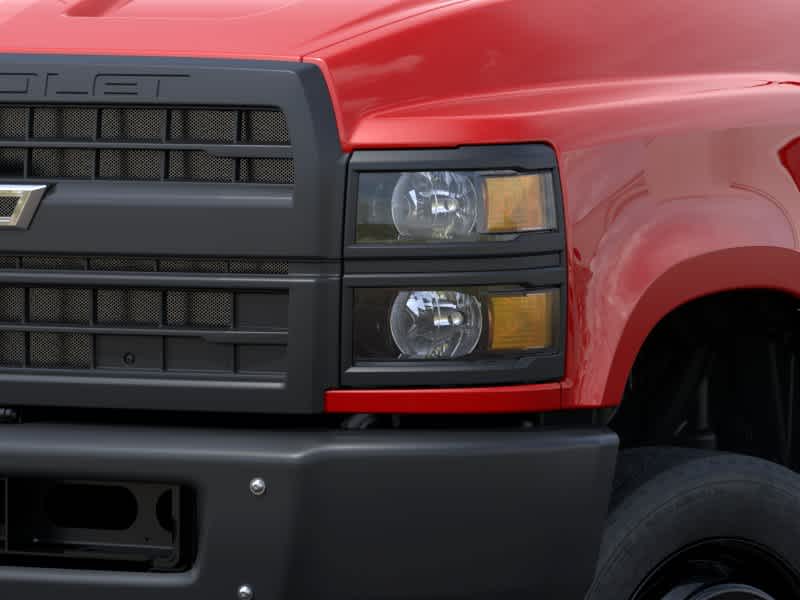

• Headlamps, halogen projector-beam
• Bumper, front, Black
• Paint, solid
• Red Hot
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lbs. (STD)
• Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Tires, rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15,000 lbs. (STD)
• Auxiliary harness, 3' for headlamps and turn signals
• Spare tire delete (STD)

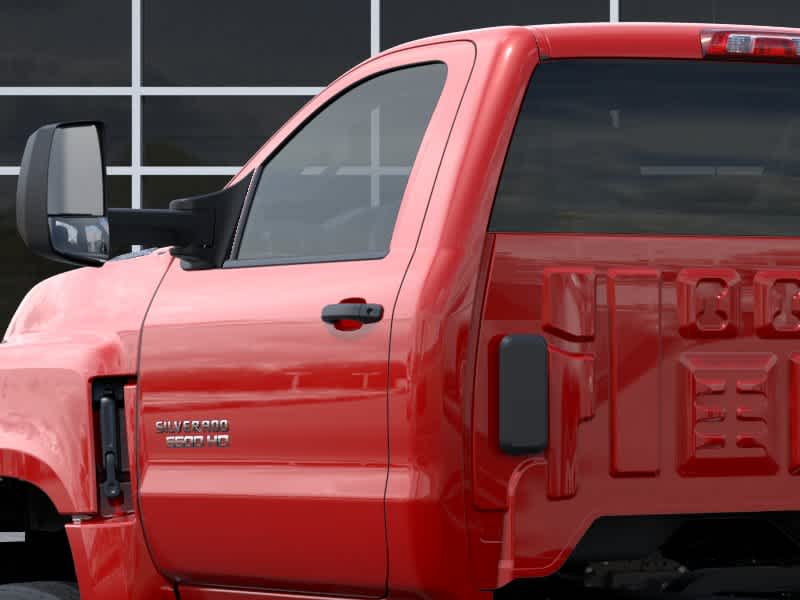

• Mirrors, outside, black, heated power-adjustable, high-visibility vertical camper-style, and lower convex spotter glass, manual-folding. Convex glass is not heated and not power adjustable. 102", Wide Load
• Wheels, 19.5" x 6.75", steel, Black painted, 8-holes, hub piloted (STD)

• Visors, driver and front passenger, vinyl
• Driver Information Center, 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
• Seat trim, Vinyl
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Seats, front 40/20/40 split-bench, cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
• Remote Keyless Entry
• Seat adjuster, driver 10-way power
• Windows, power with driver express up and down and express down on all other windows

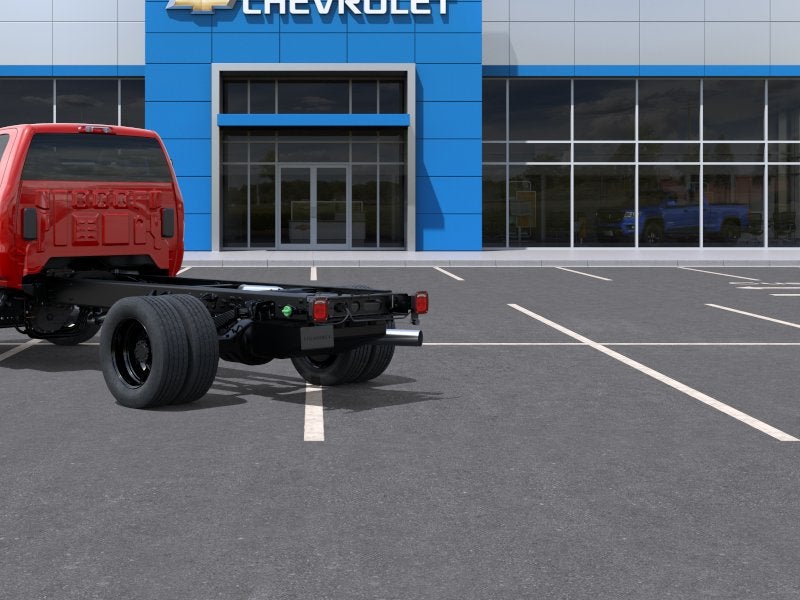

• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165" or (ER2) 189". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Emissions, 50 state certification
• Exhaust system, right side exit, behind rear wheels (Requires (ED9) 165" wheelbase.)
• Front suspension, 7,500 lbs. (3,402 kg) multi-leaf, includes shock absorbers
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Emissions, USA 50 State certified
• Rear axle, 4.30 ratio Max road speed: 79 MPH (Max. road speed of 79 MPH is for all configurations except 4WD Reg Cab (CK56403) with ED9 165" wheelbase. Max. road speed for 4WD Reg Cab (CK56403) with ED9 165" wheelbase is 75 MPH.)
• Incomplete vehicle
• Fuel, diesel B20

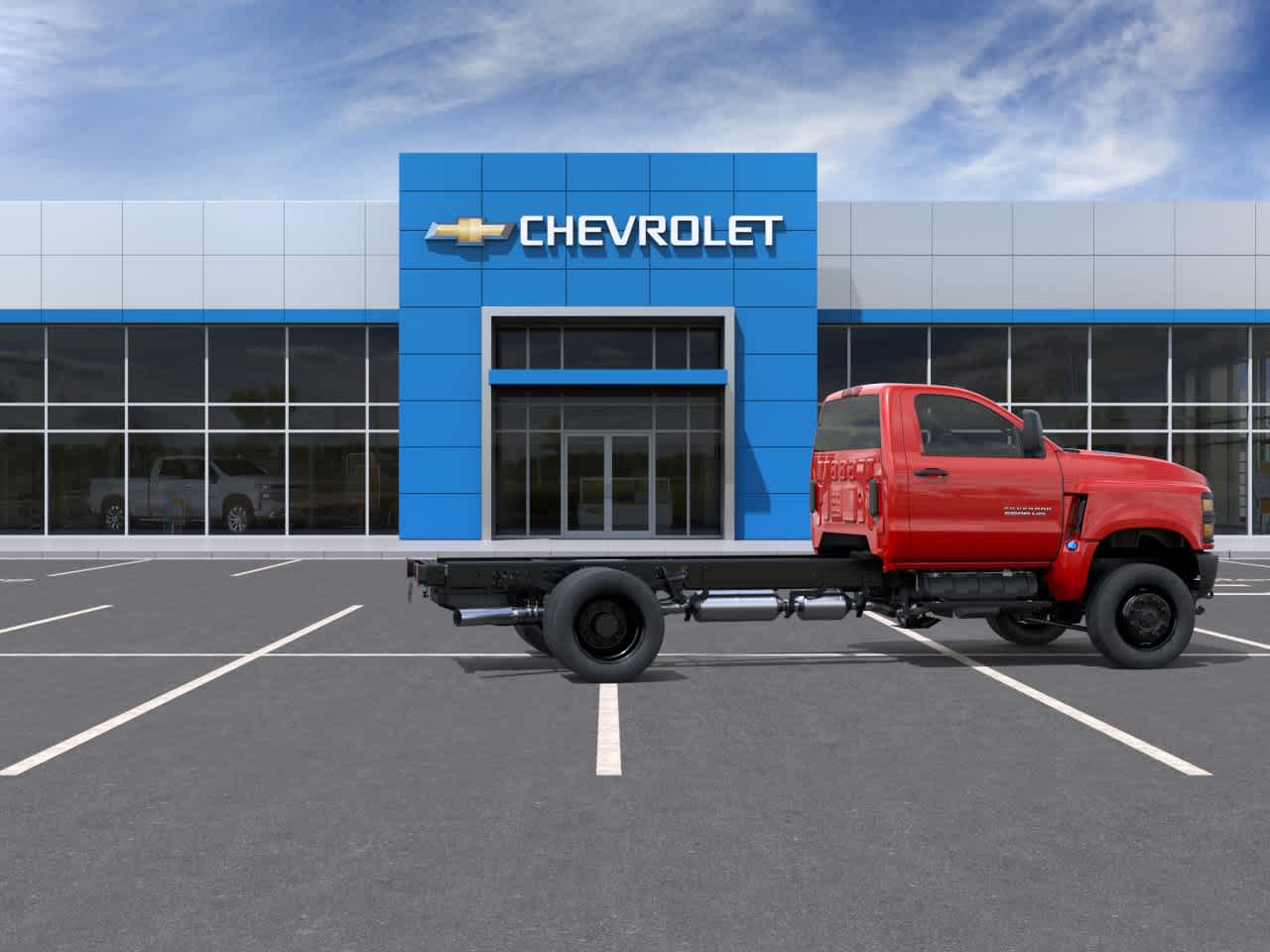

• Wheelbase, 165" (419.1 cm), 84" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust, behind the rear wheels.) (STD)
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Front axle, 7,500 lbs, Dana Spicer 60-256, single-reduction, front driving
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Rear axle, 15,500 lb. (7,031 kg)
• DPF, diesel particulate filter, manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

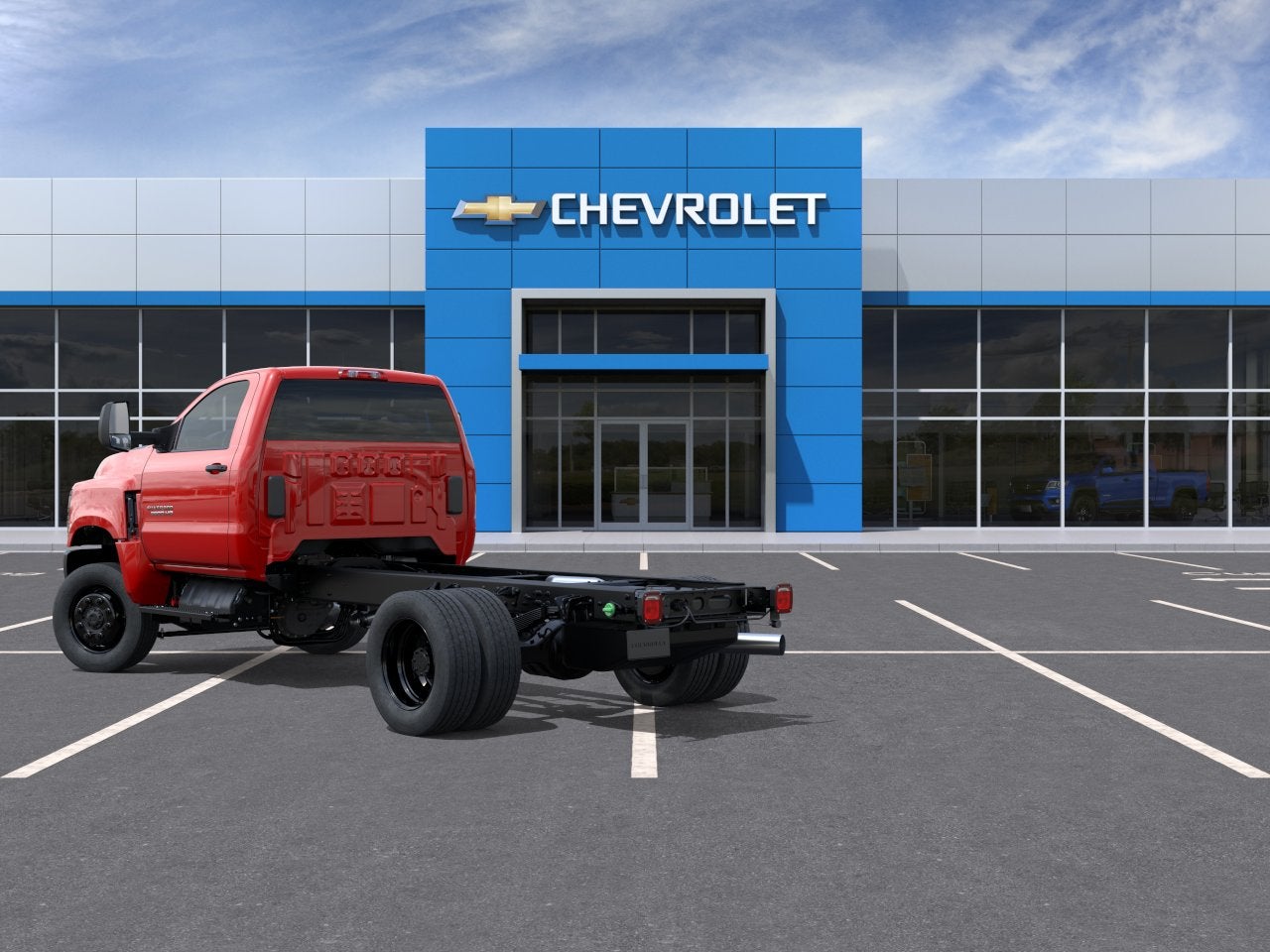

• Rear suspension, 15,500 lbs. (7,031 kg) multi-leaf, vari-rate
• Battery, top post threaded, battery jump start stud (located on battery box)
• 26,000 lbs. GCWR (11,793 kg)
• Shock Absorbers, rear
• Wheelbase, 165" (419.1 cm), 84" CA (STD)
• GVWR, 19,500 lbs. (8845 kg)
• Rear axle, 4.30 ratio Max road speed: 79 MPH

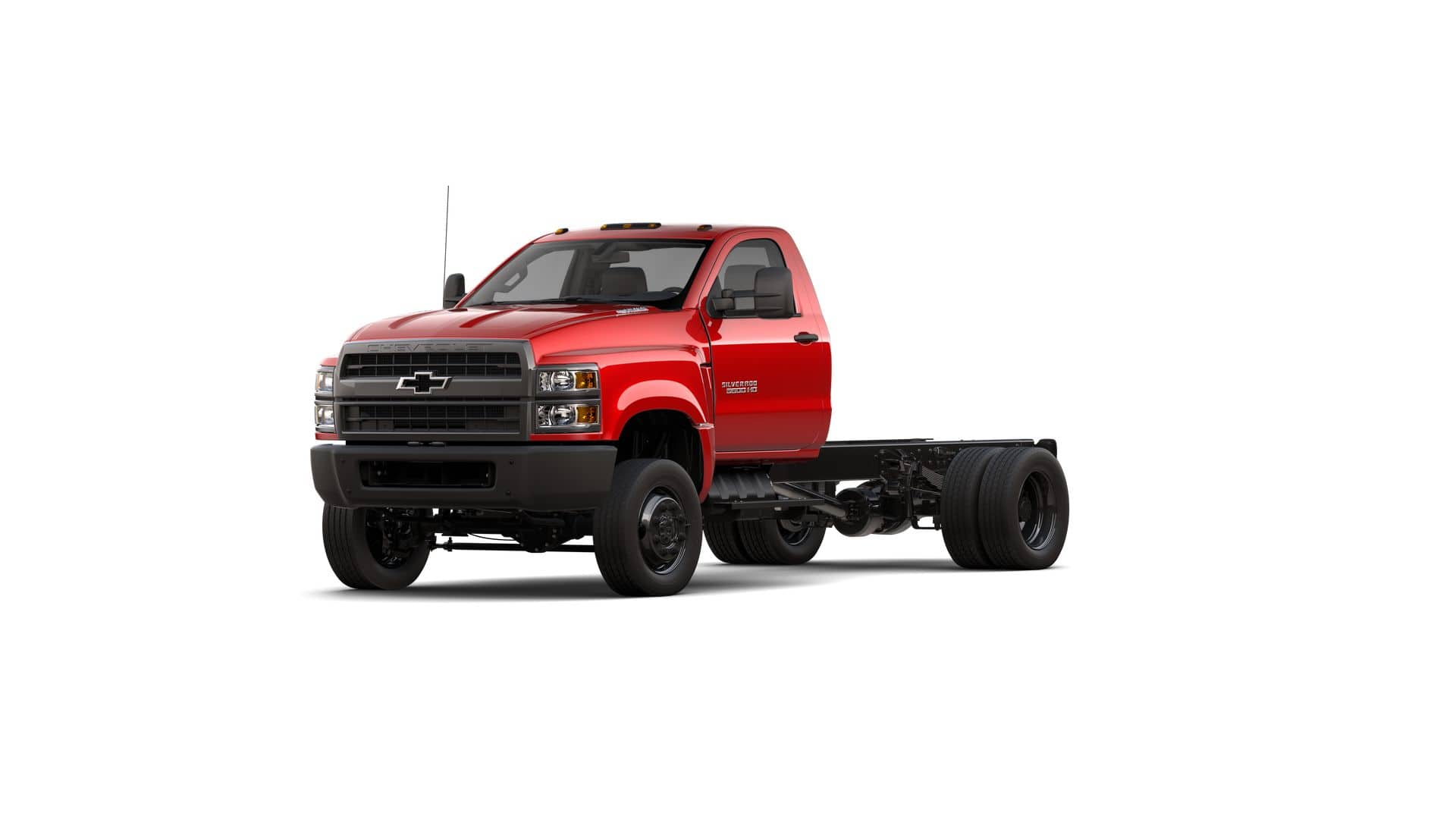

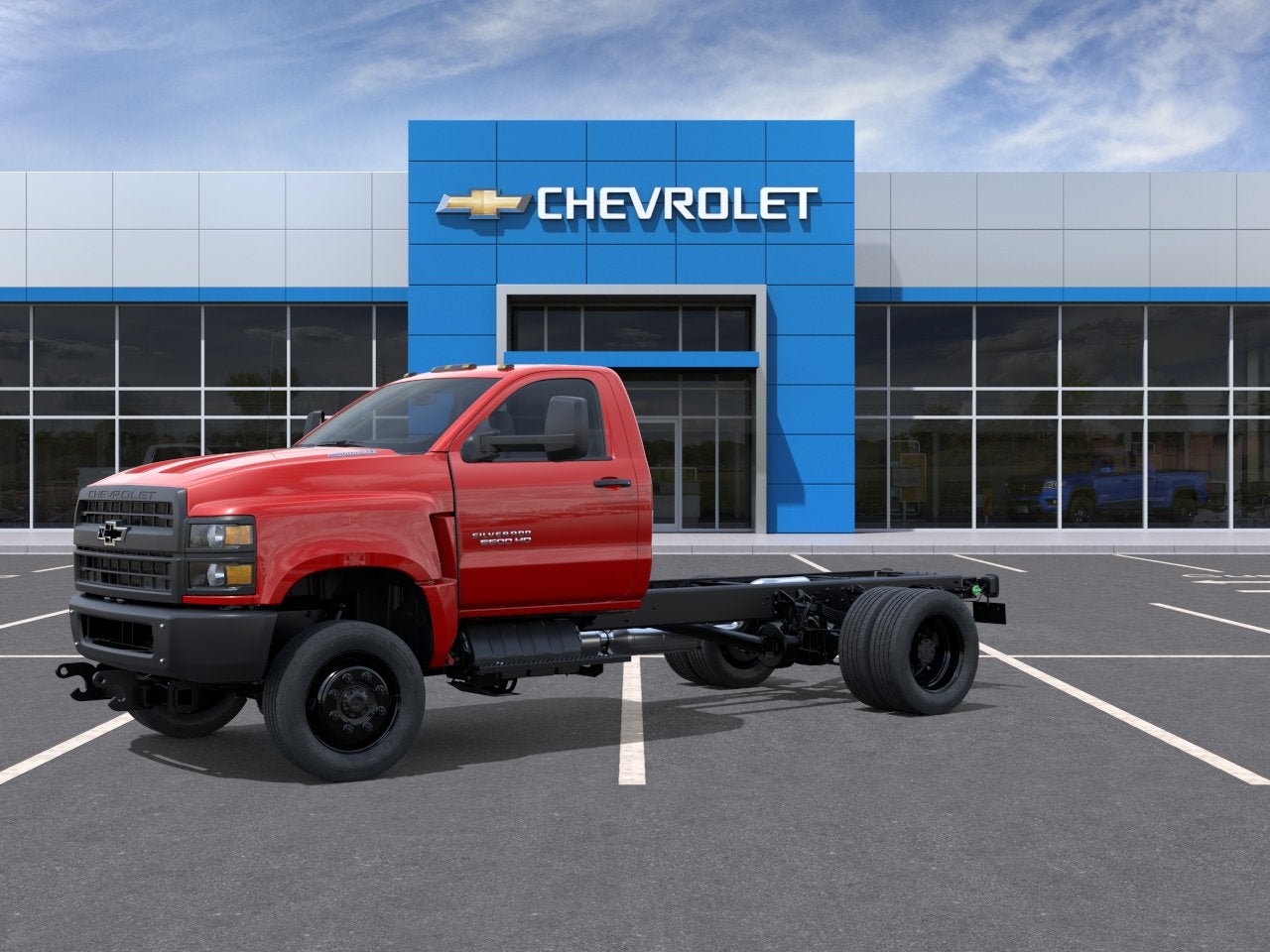

• 5500 HD Series
• Alternator, 220 amps
• Power Take-Off (PTO), not installed
• Front stabilizer bar

• Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals, (KW5) 220-amp alternator, forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
• WT Preferred Equipment Group includes standard equipment

• Fleet Processing Option

• Daytime Running Lamps, with automatic exterior lamp control

• Horn, Trumpet Style, single-note
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control

Snow Plow Prep Package

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 40 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
